Weigh Safe Weight Distribution Draw Bars
SKU WDDB8-2

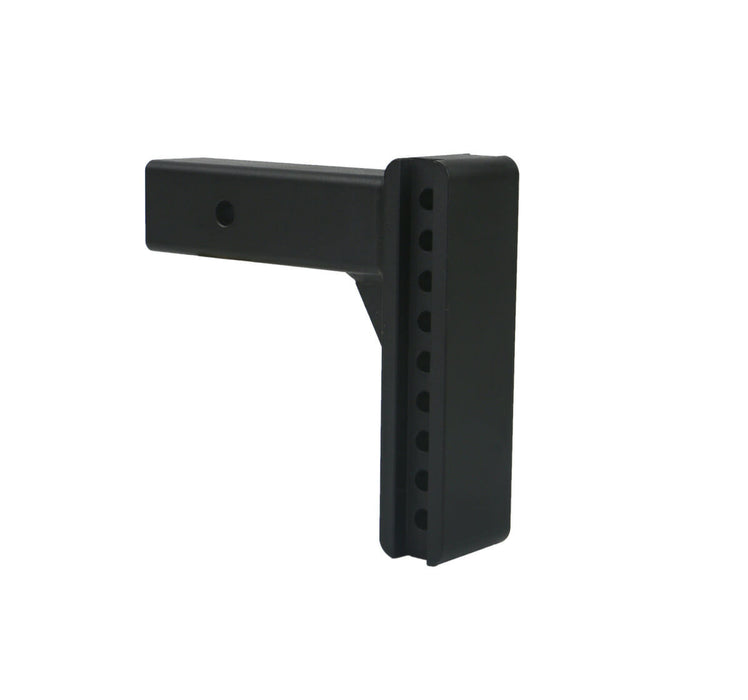

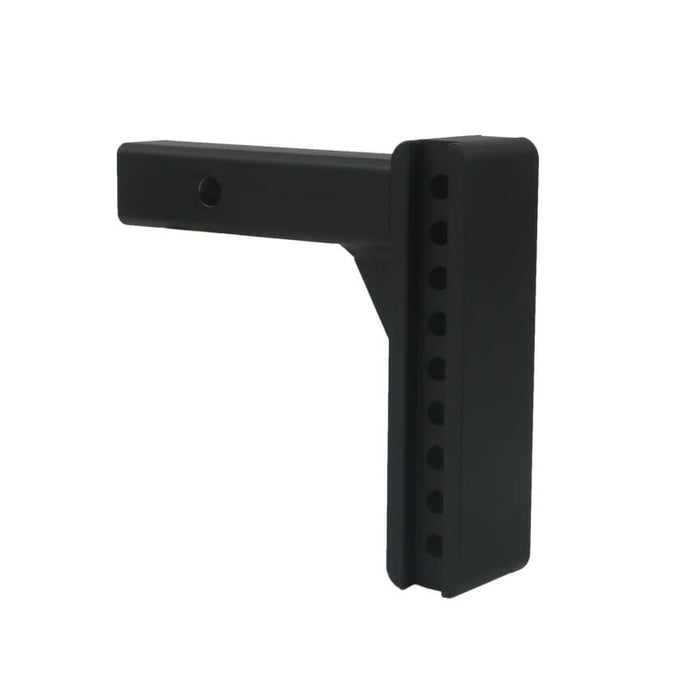

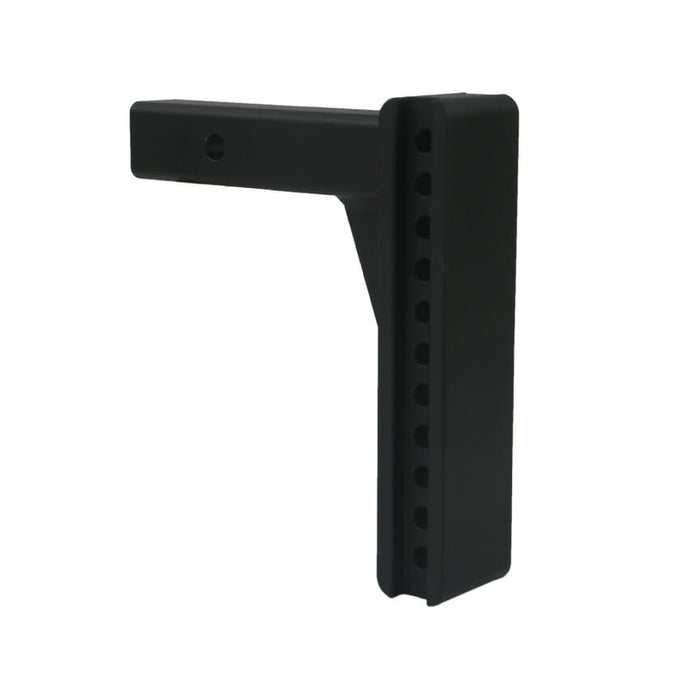

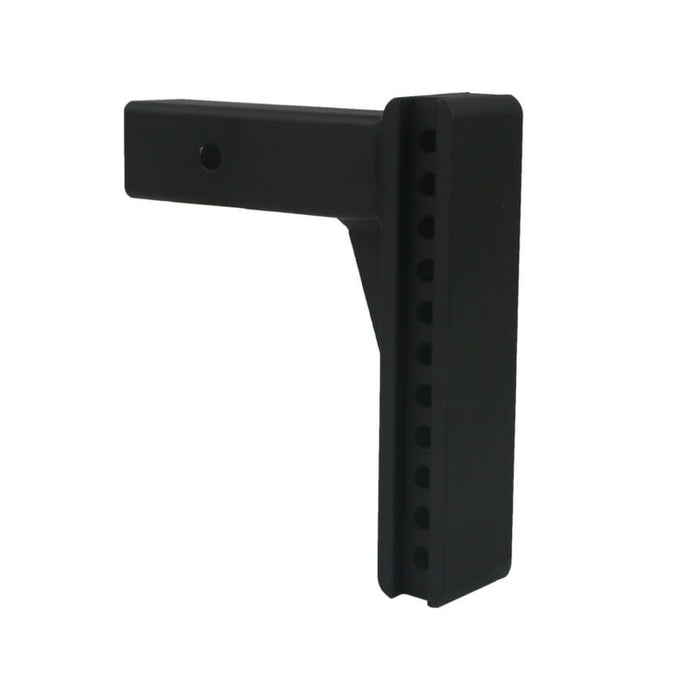

This steel draw bar was designed specifically for our True Tow Weight Distribution Hitch. It has a solid shank design and a gusset connecting the shank to the drop portion to provide added strength for this specific hitch.
Specifications
| Features |
6″ Drop Hitch |
8″ Drop Hitch |
| Shaft |
2″or 2.5″ |
| Max GTW |
2” shank – 15,000 lbs & 2.5” shank – 20,000 lbs |
| Material |
High-strength steel with black powder coated finish; shank is solid steel. |
| V5 & J684 certified |
✓ |
| Drop Hitch Adjustment |
1” increments |
| Weight |
23 lbs, 27 lbs |
29 lbs, 32 lbs |
| Rise |
All hitches may be used in the rise position ***Gain 1” (e.g.) 6” drops are 7” rises |
| Total Height |
Add 3” (e.g. 6” drops measure 9” from the top of the draw bar to the base) |
| Hitch Pin Hole |
5/8″ Diameter |
| Compatible |
NOT compatible with any of our aluminum components; ONLY compatible with our Steel Weigh Safe Slider |
| Stowable |
✓
***Our Weigh Safe 3″ shank sizes are not stowable
|
