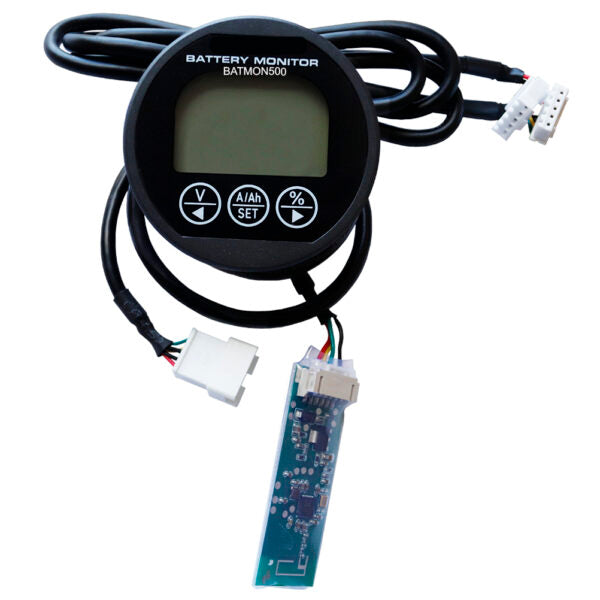

AIMS Power Remote Battery Monitor 500 Amp for Lithium and Most Battery Types up to 80V
by AIMS Power
$169.00
SKU BATMON500
Do you need a fuel gauge for your battery? The AIMS Power Battery Monitor is a high-precision meter that allows you to check the status of your battery via the monitor display or your smartphone. Through the use of the current shunt, the battery monitor measures the discharge or recharge currents and calculates the Ampere-hours (Ah) going in and out of the battery. High-precision voltage measurements are taken and displayed in real-time through the use of a field-installed sense wire. The AIMS Power battery monitor is compatible with all types of batteries including Lithium-ion, lead-acid and nickel-metal hydride batteries.
Features
Data Displayed:
- Battery Voltage
- Battery Current
- Battery State ofCharge (SOC)
- Total Ampere-hour capacity
Included components:
- Current shunt
- Shielded wire (1M)
- Display
- Butterfly nut
- Sense wire 22AWG (1 M)
- Bezel square
Specifications
| Parameter | MIn | Max | U of M |
| Voltage | 8 | 80 | V |
| Current | 0 | 500 | A |
| Capacity | .1 | 999 | Ah |
| Temperature | 0 | 35 | C |
| Active Parasitic Current | 14 | mA | |
| Standby Parasiric Current | .8 | mA | |
| Sleep Parasitic Current | 80 | uA | |
| Voltage Accuracy | +/-1 | % | |
| Current Accuracy | +/-1 | % | |
| Capacity Accuracy | +/-1 |
